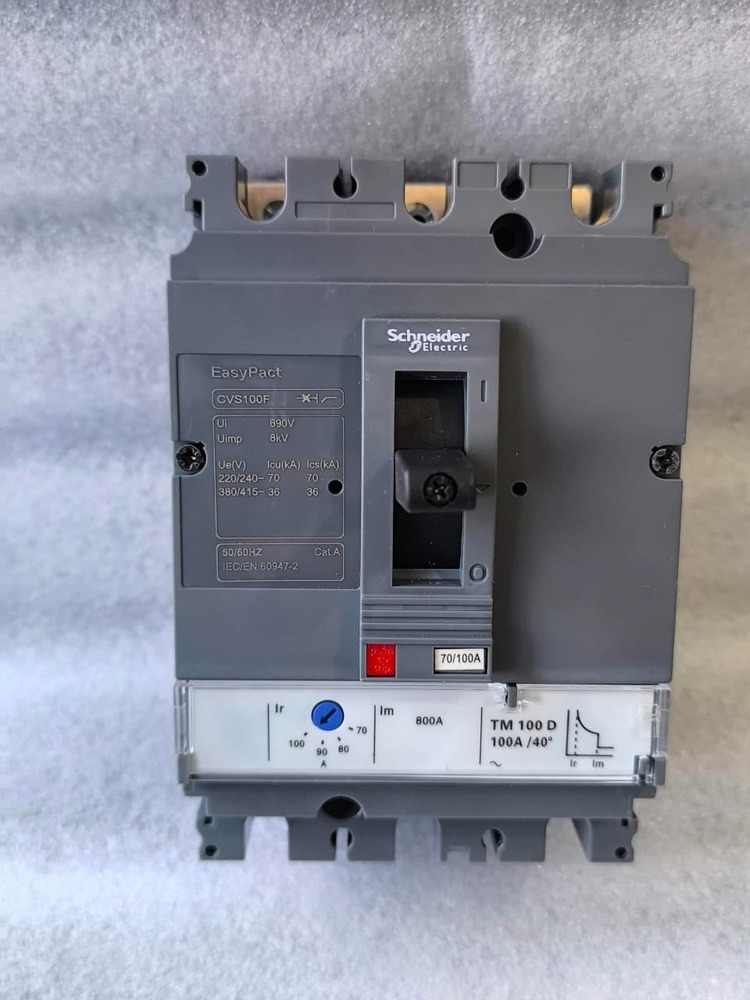

Schneider LV510337 100A 3P MCCB

Name: Schneider LV510337 100A 3P MCCB
Brand: S.J ENTERPRISE
Price: 3700.0 INR
Availability: InStock

3700.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP20
Mounting Type Panel Mount
Product Type Molded Case Circuit Breaker (MCCB)
Application Power Distribution & Circuit Protection
Rated Voltage 415 V AC
Phase 3 Phase
No Of Poles 3 Pole
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Schneider LV510337 100A 3P MCCB Price And Quantity

Minimum Order Quantity 1 Piece
Price 3700.0 INR/Piece

Schneider LV510337 100A 3P MCCB Product Specifications

IP Rating IP20
Phase 3 Phase
Application Power Distribution & Circuit Protection
Features Breaking Capacity 25 kA
Frequency 50/60 Hz
Mounting Type Panel Mount
Product Type Molded Case Circuit Breaker (MCCB)
No Of Poles 3 Pole
Rated Current 100 A
Rated Voltage 415 V AC

Schneider LV510337 100A 3P MCCB Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

The Schneider Electric LV510337 is an EasyPact CVS100F Molded Case Circuit Breaker (MCCB) designed to protect electrical networks from short circuits and thermal overloads. Primarily utilized in commercial setups and small-to-medium industrial buildings, this 3-pole (3P 3d) device handles continuous current loads up to 100 A and features a robust 36 kA breaking capacity at 415 VAC.

Key Technical SpecificationsCurrent Rating: 100 ABreaking Capacity (Icu): 36 kA RMS at 415 VAC (50/60 Hz)Operational Voltage: 440 VAC (50/60 Hz)Trip Unit Type: Thermal-Magnetic (TM-D)Protection Settings: Adjustable thermal overload (0.7 to 1 times the rated current) and fixed magnetic protectionDimensions: 105 mm x 161 mm x 86 mmWeight: Approximately 1.5 kgCompliance Standards: IEC 60947-2, CCC, EAC

Reliable Circuit Protection

Designed to safeguard electrical installations, the Schneider LV510337 MCCB provides 100A current handling with a high breaking capacity of 25 kA, minimizing risk of overload and short circuits. Its 3-pole configuration and 415 V AC rating make it adaptable for various three-phase power systems, elevating protection standards for commercial and industrial environments.

Easy Panel Mounting and Versatile Application

Tailored for panel mounting, this MCCB ensures straightforward integration into new or existing electrical setups. It supports both 50 Hz and 60 Hz power frequencies, catering to diverse project requirements. Its robust construction and reliable operation make it a preferred choice among electrical suppliers and traders across India.

FAQ's of Schneider LV510337 100A 3P MCCB:

Q: How is the Schneider LV510337 MCCB typically installed?

A: The Schneider LV510337 MCCB is designed for panel mounting, allowing for secure and efficient installation in electrical distribution boards to protect and control 3-phase circuits.

Q: What are the main benefits of using this MCCB in power distribution systems?

A: This MCCB provides reliable protection against overloads and short circuits, supports a high breaking capacity of 25 kA, and ensures operational safety with its IP20 rating, making it ideal for demanding electrical environments.

Q: When should I consider installing the LV510337 in an electrical system?

A: You should use the LV510337 whenever you need secure circuit protection for 3-phase systems operating at 415 V AC and up to 100A, especially in industrial or commercial power distribution applications.

Q: Where is this MCCB commonly used?

A: It is commonly used in panel boards for industrial setups, commercial buildings, and power distribution networks that require reliable circuit protection and high breaking capacity.

Q: What is the process for integrating this MCCB into an existing panel?

A: To integrate, ensure the panel supports panel-mounted devices, follow wiring diagrams for 3-pole connections, and make sure the MCCB is securely fixed and connections are properly tightened to maintain safety.

Q: What usage guidelines should be followed for optimal performance?

A: Operate the MCCB within its rated current (100A) and voltage (415 V AC) specifications, ensure correct phase and pole connections, and periodically inspect for signs of overheating or wear.

Q: What distinguishes this MCCB from others in similar applications?

A: The LV510337 stands out due to its high breaking capacity of 25 kA, reliable Schneider quality, compatibility with both 50 Hz and 60 Hz frequencies, and ease of installation, making it dependable for Indian power distribution needs.
