LC1E50 Schneider Contactor

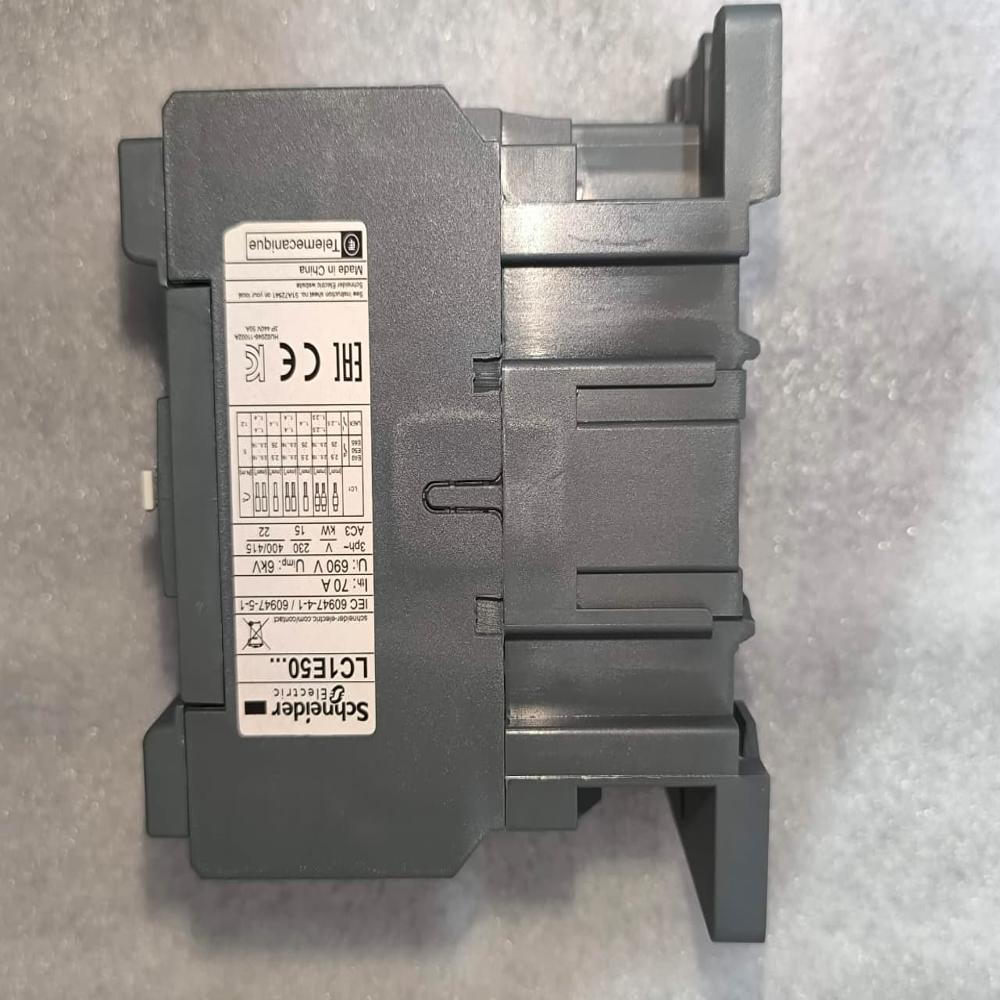

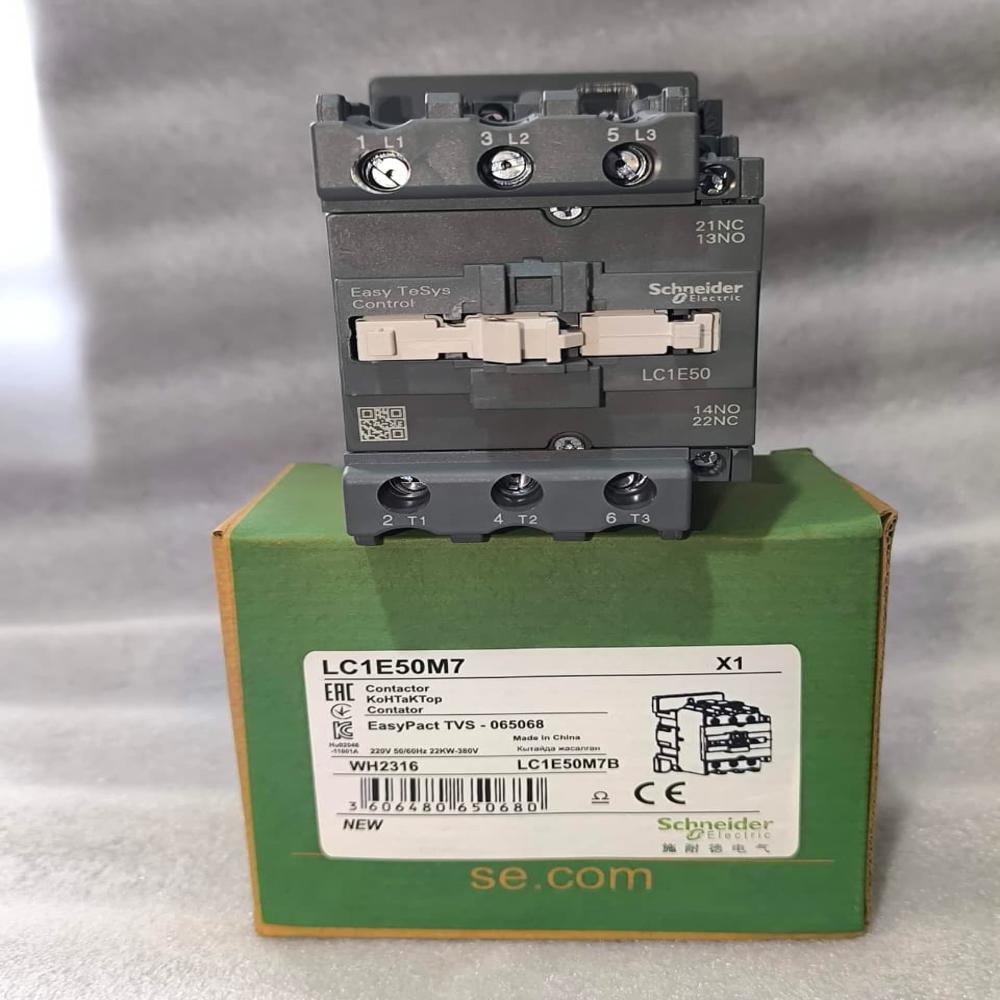

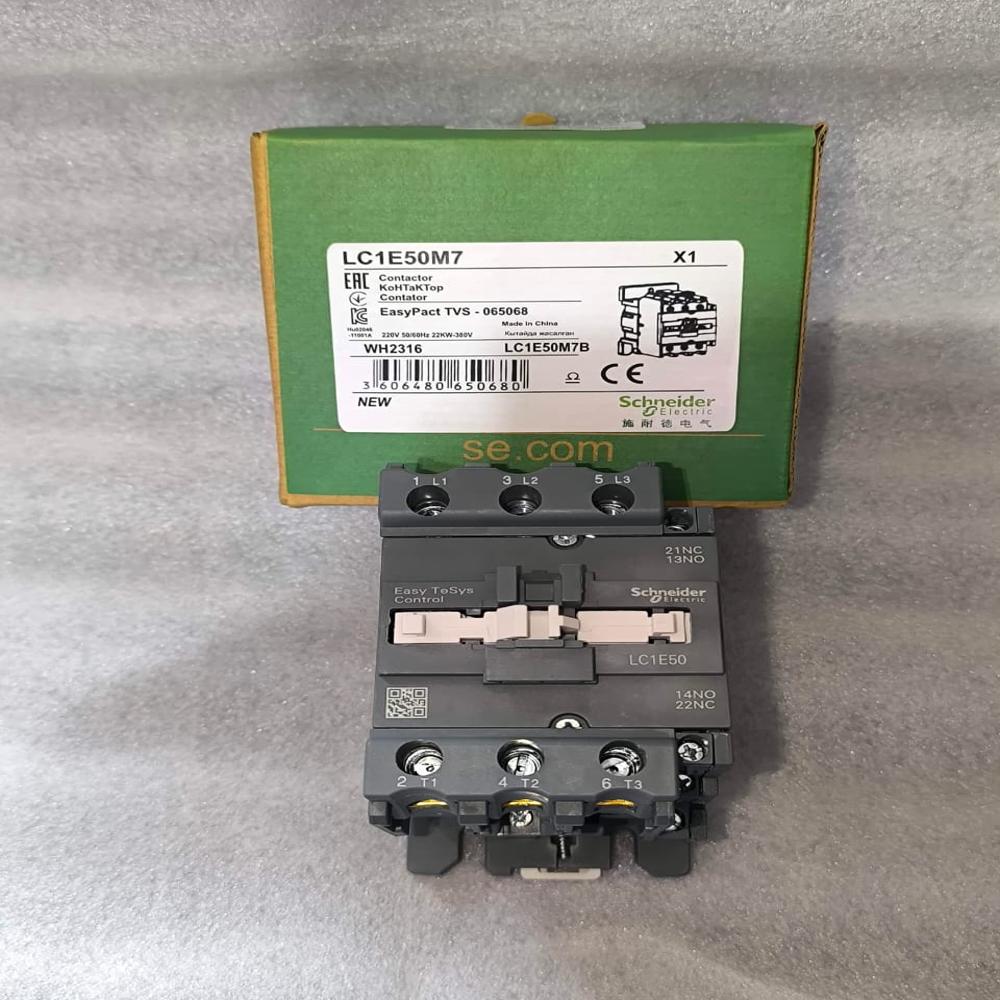

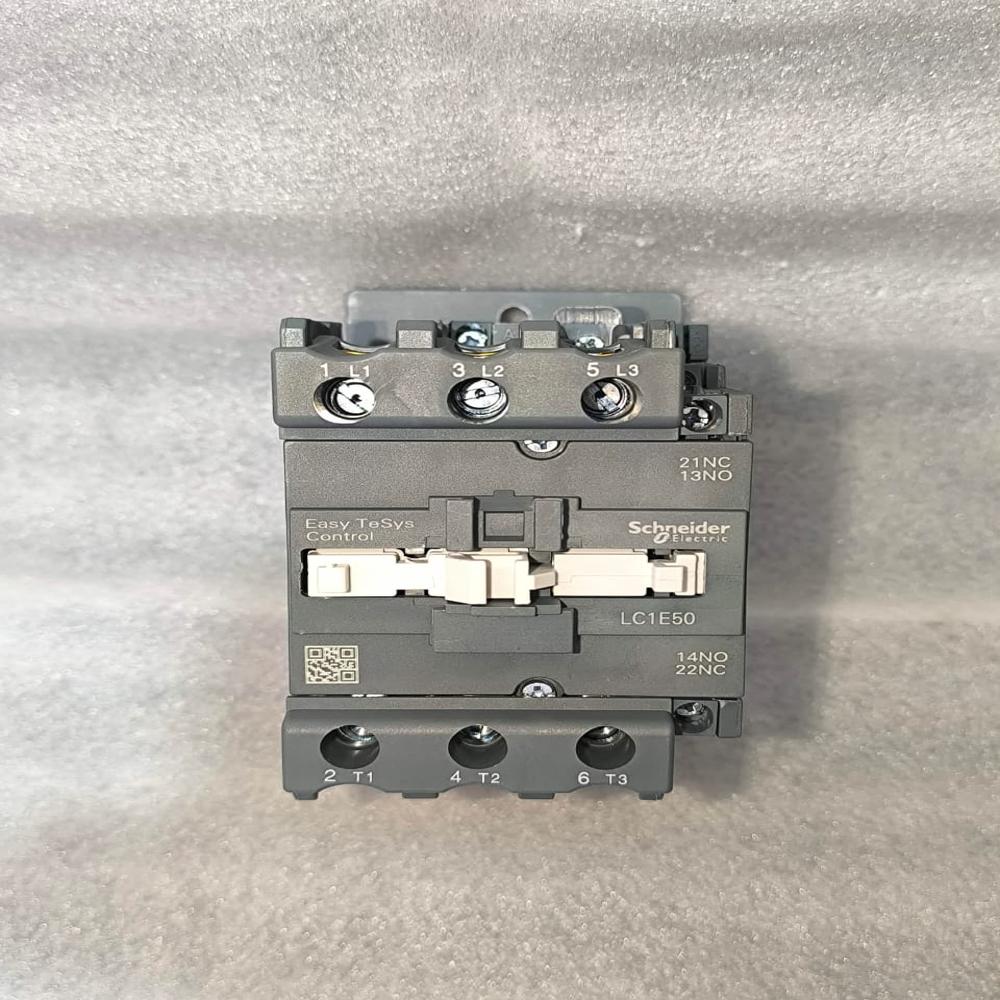

Name: LC1E50 Schneider Contactor
Brand: S.J ENTERPRISE
Price: 2500.0 INR
Availability: InStock

2500.0 INR/Piece

Get a Price/Quote

Product Details:

Shape Rectangular
Humidity % 5% to 95% RH
Power Factor 0.8
Surface Finish Matte
Operating Temperature -5C to +60C
Mounting Type DIN Rail / Panel mount
Feature EasyTeSys Control, High Performance, Auxiliary Contacts
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LC1E50 Schneider Contactor Price And Quantity

Price 2500.0 INR/Piece
Minimum Order Quantity 5 Piece

LC1E50 Schneider Contactor Product Specifications

Material Plastic, Metal
Mounting Type DIN Rail / Panel mount
Operating Temperature -5C to +60C
Connection Type Screw terminal
Output Type Normally Open/Closed Contacts
Energy Consumption 9 VA (holding, AC) aprox.
Weight 0.8 kg
Humidity % 5% to 95% RH
Power Factor 0.8
Protection Level IP20
Shape Rectangular
Surface Finish Matte
Connector Type Screw type terminal
Phase Three Phase
Rated Voltage 690V AC
Insulation Material Thermoplastic
Product Type Contactor
Dimension (L*W*H) 90 x 105 x 104 mm
Overheating Protection No (requires external relay)
Efficiency High mechanical and electrical durability
No Of Poles 3
Feature EasyTeSys Control, High Performance, Auxiliary Contacts
Input Voltage 220V/230V AC (Coil Voltage)
Application Motor Control, Power Distribution
IP Rating IP20
Size Standard Size (as per model)
Frequency (MHz) 50/60 Hz
Color Grey/Black

Ambient Air Temperature for Operation -5C to 60C
Protection Against Electric Shock Class II
Electrical Durability 1.2 million cycles AC-3
Short-Time Withstand Current 800A for 1 s
Model Number LC1E50M7
Rated Operational Current (Ie) 50A (AC3/415V)
Altitude Operating Up to 2000m
Series EasyPact TVS
Mechanical Durability 10 million cycles
Auxiliary Contacts 2NO + 2NC (configurable)
Coil Consumption ~100 VA (inrush), ~9 VA (holding)

LC1E50 Schneider Contactor Trade Information

Delivery Time 4 Days

Product Description

The LC1E50 is a 3-pole AC power contactor manufactured by Schneider Electric under their Easy TeSys (also known as EasyPact TVS) budget-friendly industrial automation line. It is designed to handle currents up to 50A for AC-3 motor control applications up to 22 kW to 30 kW at 440V.

Core Technical SpecificationsCurrent Rating: 50 Amps (AC-3 duty) / up to 70 Amps (AC-1 resistive load).Power Rating: 22 kW at 380/400V or up to 30 kW at 440V/500V.Poles: 3 NO (Normally Open) main power poles.Auxiliary Contacts: Standard configuration typically includes built-in 1 NO + 1 NC contacts.Mounting: Standard 35mm DIN rail or direct plate mounting.Lifespan: 5 million mechanical cycles; 0.9 million electrical cycles under AC-3 operational loads.

Efficient Motor Control Solution

The LC1E50M7 Schneider Contactor is engineered for efficient motor control and reliable power distribution. Thanks to its advanced EasyTeSys Control technology, it delivers seamless operation in a wide range of industrial setups. Its compact rectangular design saves space, while high durability ensures long-term performance with minimal maintenance. The contactor's matte finish and robust plastic-metal construction guarantee resilience in demanding environments.

Superior Durability and Safety Features

Designed for longevity, the LC1E50 offers impressive mechanical and electrical life cycles, supporting up to 10 million mechanical operations. Rated for 690V AC, it withstands short-time currents up to 800A and is safeguarded by Class II protection against electrical shock. Engineered to handle humidity up to 95% RH and temperatures from -5C to 60C, the LC1E50 is built to endure varied industrial conditions with ease.

FAQ's of LC1E50 Schneider Contactor:

Q: How do I install the LC1E50M7 Schneider Contactor?

A: The LC1E50M7 can be installed either on a DIN rail or directly onto a panel using screw terminals. Ensure you follow the wiring instructions and safety protocols provided in the product manual.

Q: What applications is the LC1E50M7 contactor best suited for?

A: This contactor is ideal for motor control, power distribution, and auxiliary circuit switching in industrial environments. Its high performance and rugged design make it suitable for demanding applications.

Q: When should I consider using auxiliary contacts with this contactor?

A: Auxiliary contacts (2NO + 2NC, configurable) are recommended when you need to add extra control or signaling circuits, such as for status indication or interlocking purposes in automation systems.

Q: Where can the LC1E50M7 be operated safely?

A: It is suitable for operation in environments with temperatures from -5C to 60C, up to 2000 meters altitude, and humidity levels between 5% and 95% RH. It has an IP20 protection rating, making it safe for indoor industrial use.

Q: What is the process to ensure electrical durability and efficiency?

A: Maintain the contactor by routinely inspecting for dust, tightening terminal screws, and ensuring external protection like thermal relays (since it has no built-in overheating protection). Proper installation and periodic checks help achieve its rated electrical and mechanical durability.

Q: How does this contactor benefit my installation?

A: The LC1E50M7 offers high reliability with long operating life, minimal maintenance, and easy configurability. Its adaptable mounting and robust construction reduce downtime and improve overall plant efficiency.
