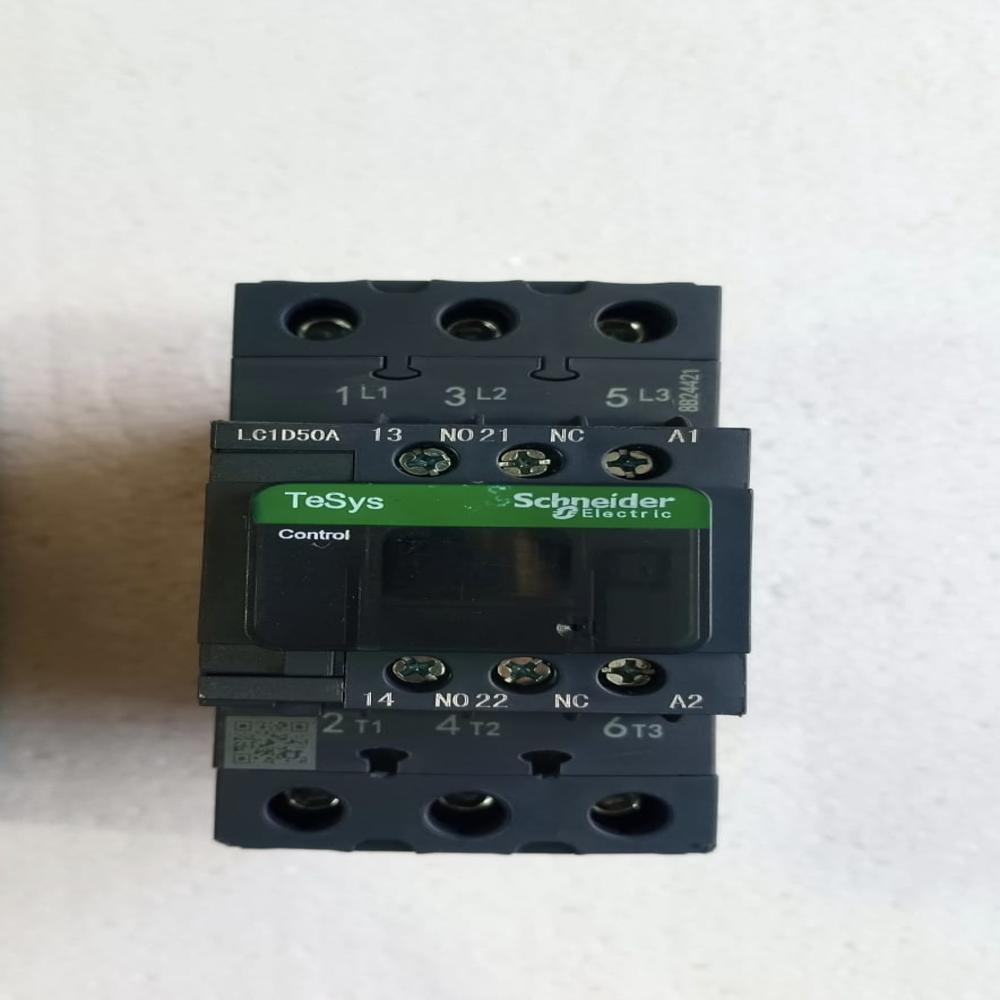

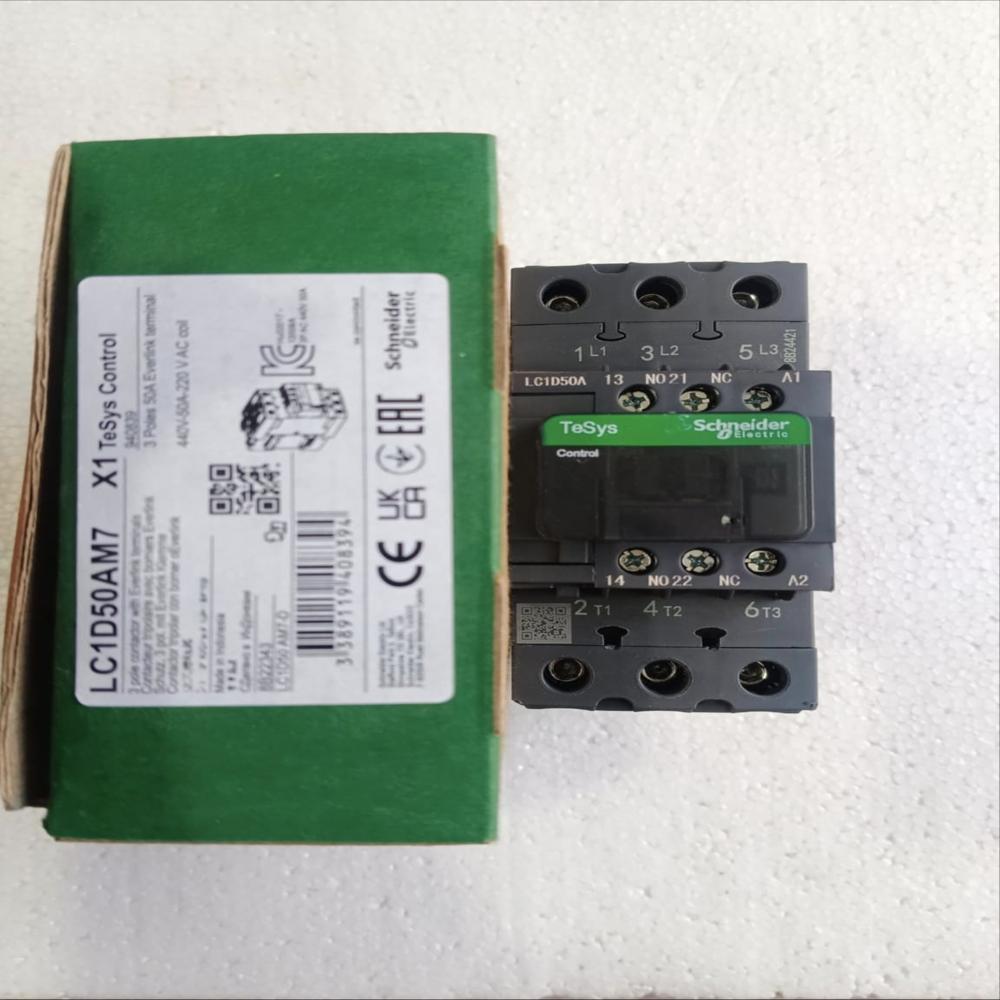

Schneider LC1D50AM7 Contactor

Name: Schneider LC1D50AM7 Contactor
Brand: S.J ENTERPRISE
Price: 2700.0 INR
Availability: InStock

2700.0 INR/Piece

Get a Price/Quote

Product Details:

Humidity % Up to 95% RH (Non-Condensing)
Surface Finish Matte
Insulation Material AC Operated Contactor with Built-in Auxiliary Contacts
Feature AC Operated Contactor with Built-in Auxiliary Contacts
Efficiency High Switching Efficiency
Connector Type Screw Terminal
Product Type Power Contactor
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Schneider LC1D50AM7 Contactor Price And Quantity

Minimum Order Quantity 1 Piece
Price 2700.0 INR/Piece

Schneider LC1D50AM7 Contactor Product Specifications

Application Motor Starters, Control Systems, Contactors, Relays, Signalling Circuits
Rated Voltage 690 V AC
Energy Consumption Approx. 9–10 W (Coil Holding Consumption)
Warranty 12 month
Power Rating Up to 22 kW at 415V AC-3
Connector Type Screw Terminal
Humidity % Up to 95% RH (Non-Condensing)
Surface Finish Matte
Insulation Material AC Operated Contactor with Built-in Auxiliary Contacts
Weight Approx. 0.85 kg
Feature AC Operated Contactor with Built-in Auxiliary Contacts
Dimension (L*W*H) Approx. 122 × 55 × 120 mm
Usage & Applications Motor Starters, HVAC Systems, Pumps, Compressors, Industrial Control Panels
Operating Temperature -5°C to +60°C
Output Type 3NO Main Contacts
Protection Level IP20
Efficiency High Switching Efficiency
Product Type Power Contactor

Schneider LC1D50AM7 Contactor Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

The Schneider Electric LC1D50 is a highly reliable, 3-pole electrical power contactor from the popular TeSys Deca / TeSys D range. It is engineered primarily for commercial and industrial motor control applications up to 50 Amperes.

Core Technical SpecificationsMain Pole Configuration: 3 Normally Open (3 NO) contacts.Current Rating (AC-3): 50 A for inductive motor loads (up to 440V AC).Current Rating (AC-1): 80 A for resistive or non-inductive loads.Motor Power Capacity: Supports up to 22 kW at 400V AC or roughly 40 HP at 460V (3-phase).Auxiliary Contacts: Includes integrated 1 NO + 1 NC contacts as standard.Wiring System: Utilizes patented EverLink BTR screw connectors for secure power connections.Mounting: Supports standard DIN-rail or direct panel mounting.

Tell us about your requirement

Price: Â

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Schinder Contactor' category

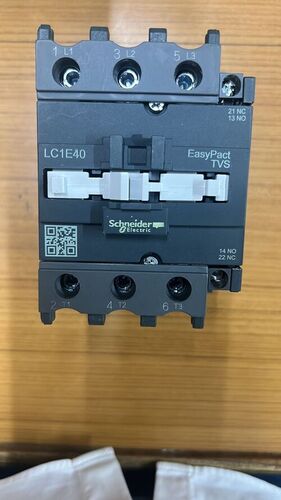

Schneider contactor Lc1e40 Price : 2200.0 INR/Piece Minimum Order Quantity : 1 Frequency : 50/60 Hz No Of Poles : 3 Pole Phase : 3 Phase Product Type : Contactor Application : INDUSTRIAL Rated Voltage : Up to 690 V AC Rated Current : 40 A Mounting Type : DIN Rail / Panel Mount Features : Compact Design, Long Electrical Life, Reliable Switching IP Rating : IP20 Overheating Protection : YES
